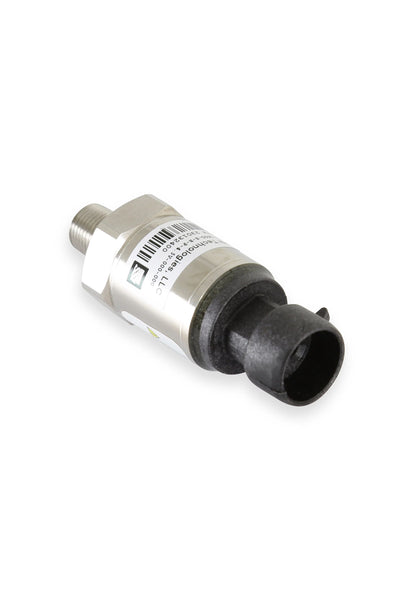

1600 PSI Stainless Pressure Sensor
Features:
- 0-1600 PSI
- Stainless steel
- Preconfigured for use in Dominator and HP systems
- Has linear voltage output range of 0.5 - 4.5 volts

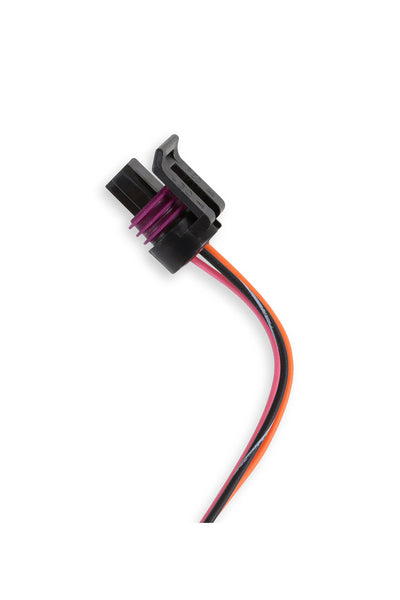

- Pigtail is included with the sensor
| Body Diameter | .875" |
|---|---|
| Body Length | 2.558" |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Emission Code | 5 |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Inlet Size | 1/8 inch NPT |
| Linear voltage output | .5 - 4.5 Volts |
| Material | Stainless Steel |
| Maximum Pressure Reading | 1600 PS |
| Mount Type | Screw-In |
| Part Type | Fuel Injection Pressure Sensor |
| Pressure Range | 0-1600 PSI |
| Product Type | Pressure Senser - Transducer |
| reference voltage required | 5 Volts |
| Sub Category | Sensors |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Threaded End Diameter | 1/8-27 NPT IN |
| UPC | 090127668696 |
| Part Number | 554-104 |
