C10 Power Brake Booster and Wilwood Compact Tandem Master Cylinder Kit

Tuff Stuff / Wilwood

Regular price $629.95

You must enter what brake package you are using so that I can find your piston surface area. This will help me determine what bore size is best for you.

When converting or upgrading your power brakes system, it's important to make sure you have the right combination of parts for your application.  This kit features the products we use on our in house builds along with many customers who have reached out needing help with their builds.  Featuring a Wilwood Compact Master Cylinder and Tuff Stuff brake booster combined.  All kits will have the master and booster assembled as 1 before shipping saving you time and ensuring proper spacing of the pushrods between the booster and master.  This setup requires a special tool to ensure that the distance between the booster pushrod and the master cylinder is perfect.  If purchased separately, you will make the make that adjustment to the booster's internal pushrod.

Wilwood Compact Tandem Master Cylinder:

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns power brake system applications.  The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

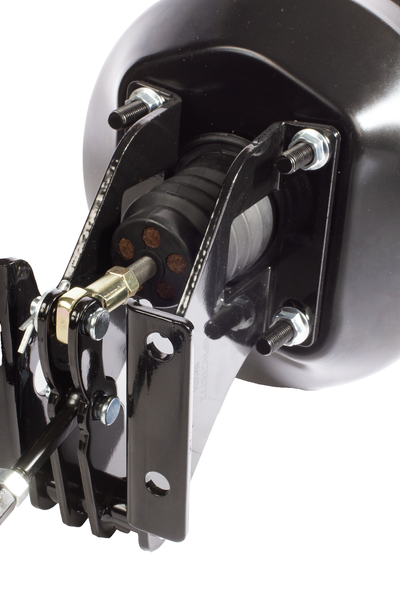

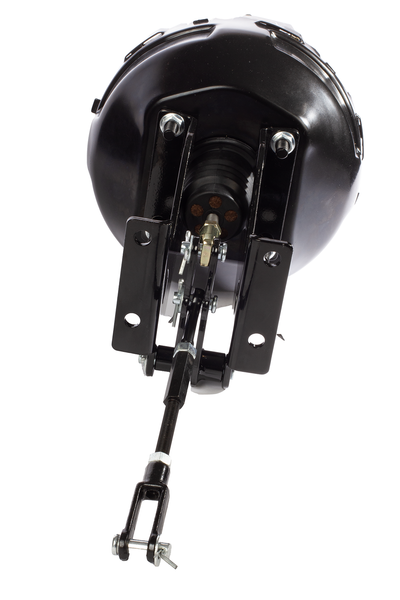

Tuff Stuff 9" Dual Diaphragm Brake Booster:

Tuff Stuff Performance brake boosters can assist in upgrading your manual or factory brake system. These vacuum diaphragm units enhance braking ability, while offering much easier pedal operation.

  • Includes Wilwood master cylinder, Tuff Stuff 9" Dual Diaphragm Booster, prop valve, left-hand mounting bracket for prop, stainless lines, and hardware.
  • Black in color
  • Sized specifically for your brake packages.
  • Compact Tandem Model

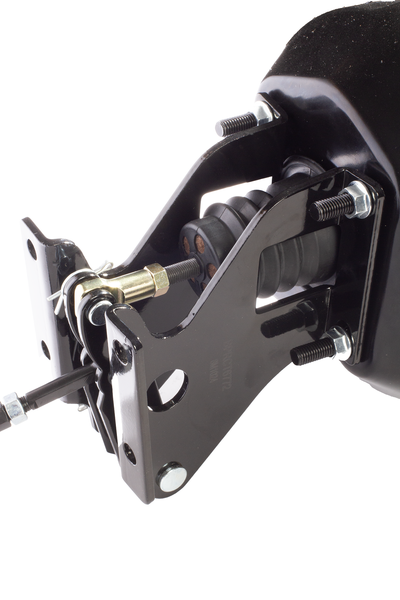

  • Does not include mounting brackets. (Brackets for 60-72 C10 are optional)
