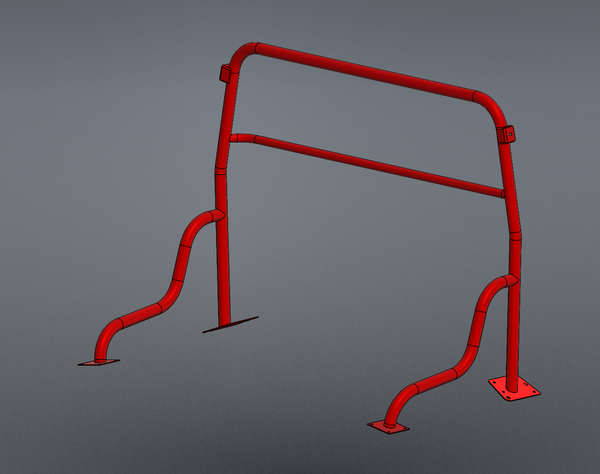

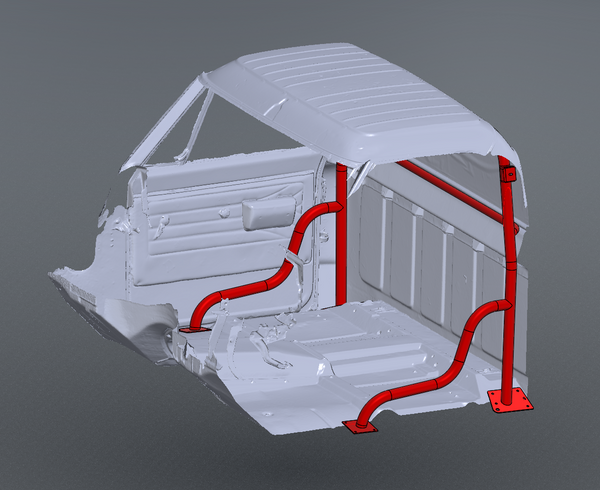

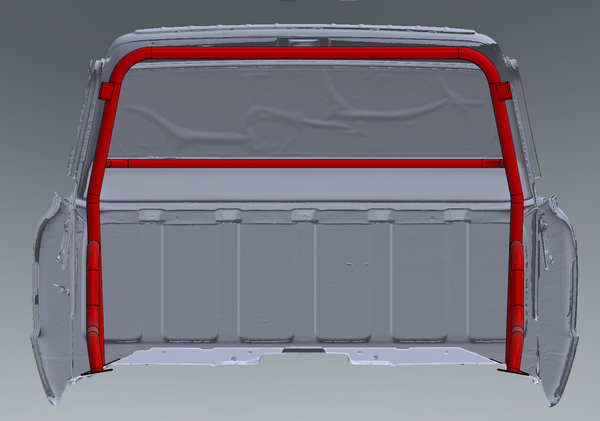

Level 7 Motorsports has been building top tier C10 trucks for a long time. Over the years, designing a harness bar that fit within the truck and worked correctly was something that had to be built by hand. Offering them as a production part was difficult considering the labor time associated with bending, notching, and welding each kit. Now after a few years they have invested in scanning the interior of a very good cab and having their harness bar design put into software. Now these harness bar kits are CNC bent, CNC notched, and shipped to Level 7 in bulk.
Once the materials are in house, they are fit into a fixture and tig welded together. The door bars disconnect from the main hoop via bolt together tube clamps. This allows for easy installation and shipping.
Options for purchasing allow for your budget and skill level.
Available as a completely tig welded and powder coated package or as simple as a pallet of materials for you to weld and choose a finish.
- All US sourced materials
- All made in the USA
- 1.75"x 0.95" 4130 Chromoly tubing
- 1.25"x 0.95" 4130 Chromoly tubing for harness tube
- Computer designed
- CNC bent
- CNC laser notched
- Includes all grade 8 hardware and lower plates
- Powder coat finish option available
Email sales@spiritandspeed.com for customer powder coat colors.
** MATERIALS ESTIMATED TO ARRIVE AT LEVEL 7 ON JULY 9TH 2026
